Ahi Vortex Filters

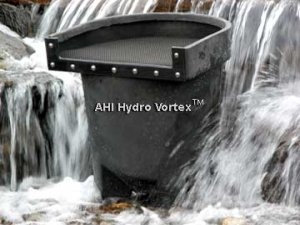

AHI Hydro Vortex? Biological Filters
677 Total SSA (Specific Surface Area)
The AHI (pronounced Ah-He, as in Ahi Tuna) is the latest hi-tech advancement in pond and water garden filtration technology. It is the smallest version of the Patent Pending Hydro Vortex? series of biological FilterFalls.
Vortex design uses centrifugal forces to remove particulates from the water!
The AHI is designed for ponds and water gardens with koi and goldfish. With its 1.83 cubic feet of Hydro FilterSilk? media and 677 square feet of nitrifying bacterial Specific Surface Area (SSA), it is designed to metabolize 13,540 milligrams of ammonia, and 67.70 grams of fish food and waste per day from a maximum of 1,000 gallons of pond water. It is recommend for filtering up to an 8'x11' pond with a maximum depth of 2' or an 8'x8' pond with a maximum depth of 3' with fish loads up to 203.10 grams of total combined body weight.
Based on Total SSA of 677, the Ahi Hydro Vortex? biological waterfall filter can metabolize:
677 SSA x .1 = 67.70 grams of fish waste
677 SSA / 50 = 13.54 grams of ammonia
67.70 grams of fish waste x 3 = 203.10 grams of total fish weight that the Ahi Hydro Vortex? filter can effectively support.
The AHI Hydro Vortex? filter comes complete with:
-
1.85 cubic feet of Hydro FilterSilk? (1 Bag)
-
677.135 square feet of biological Specific Surface Area (SSA)
-
Round Vortex chamber
-
Threaded Vortex Inlet Jet
-
Settling Cone
-
Threaded Bottom Drain
-
Two 1?" male pipe adaptors
-
10' of 1?" flex PVC pipe
-
1?" ball valve
-
Easy to install liner gasket flange
-
Stainless Steel Screws, Washers, and Self Biting Nuts
-
Lower diffuser Grate
-
Upper diffuser Grate
